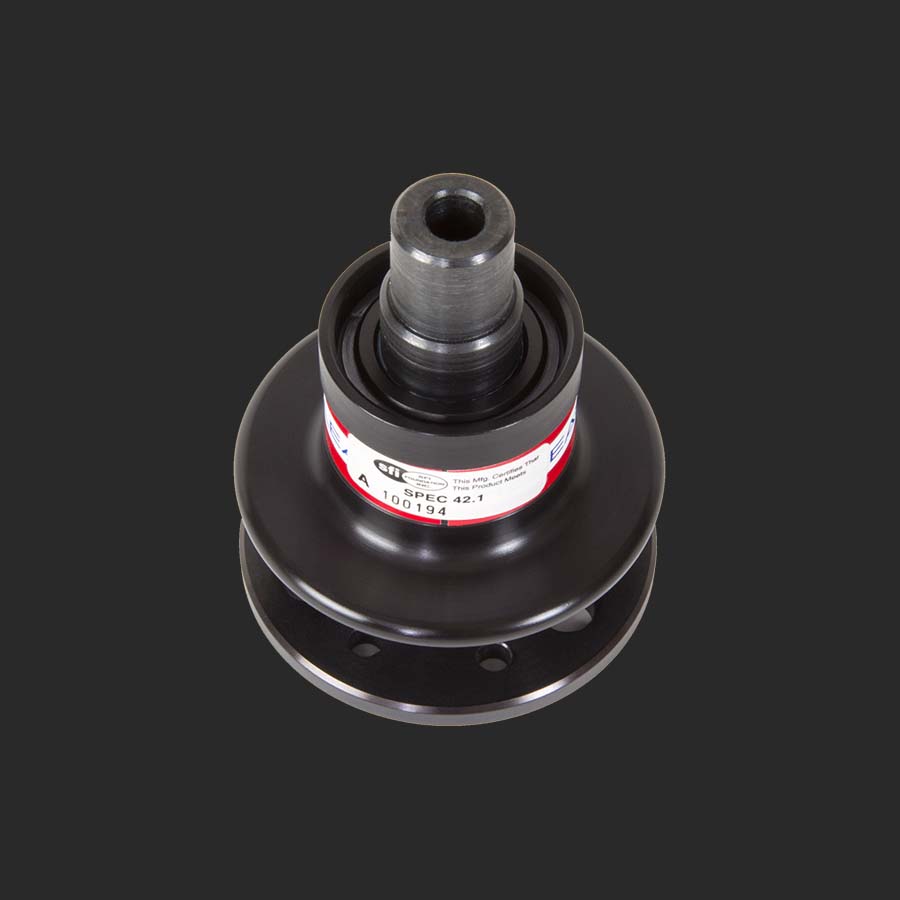

Strange Quick Release Hub Designed For 3 & 4 Bolt Dragster Steering Wheels

Application
Dragster steering wheels
With three or 4 bolt hole pattern

Features
• Provides quick removal of steering wheel
• Integral flange eliminates loose components
• Spring loaded with positive locking system
• Coarse spline simplifies engagement
• One wide tooth ensures proper steering wheel alignment

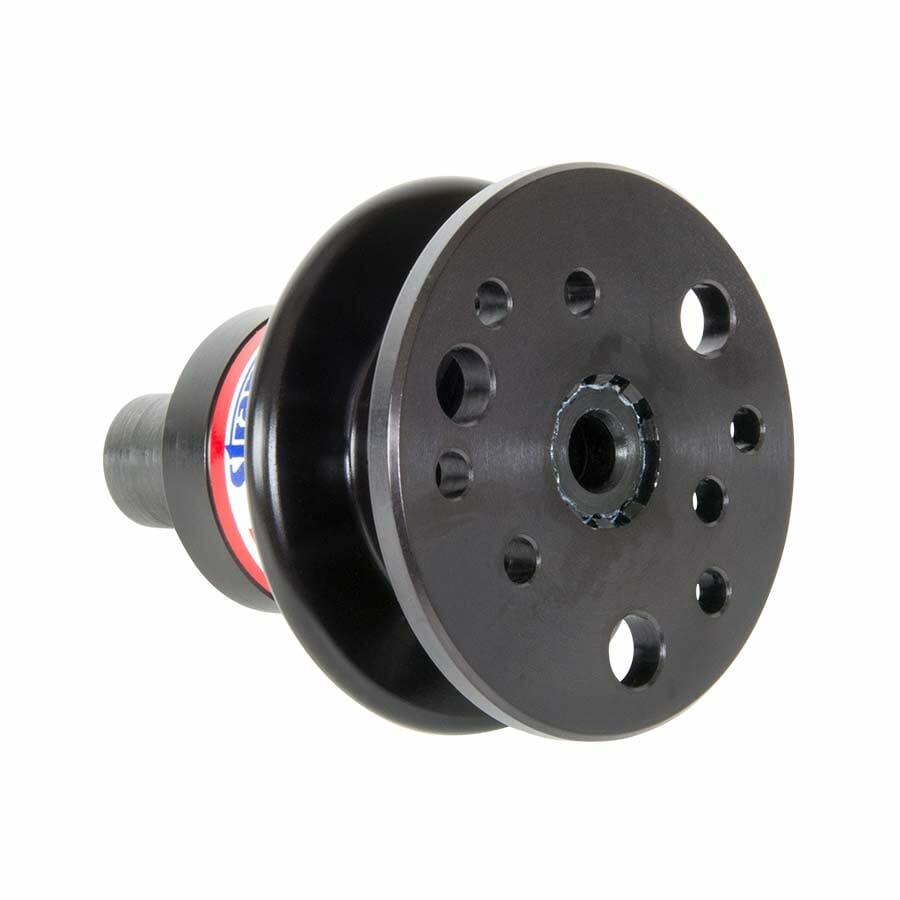

Hub
2024-T351 billet aluminum
2.500″ OD
3 on 1.375″ bolt circle .193″ holes
3 on 1.750″ bolt circle .316″ holes
4 on .750″ x 1.650″ centers .193″ holes
Broach 10 spline with one tooth removed
Black hard anodized finish

Release Collar
6061-T6511 billet aluminum
2.480″ OD
Black hard anodized finish

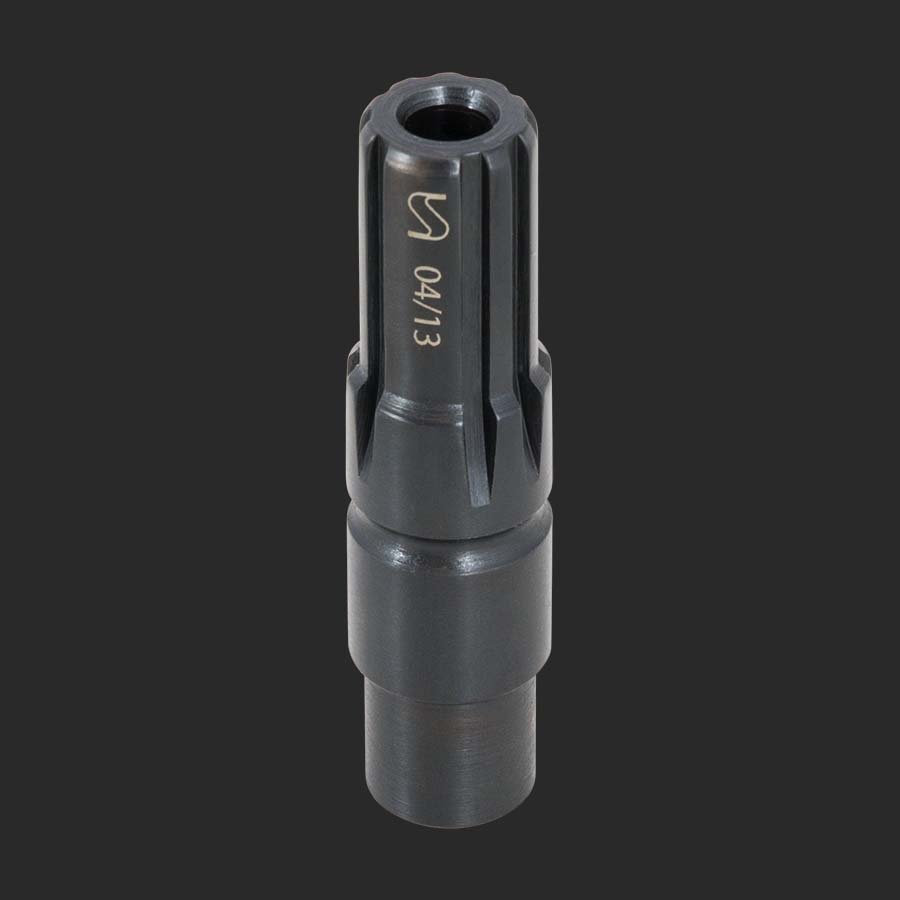

Weld End
4130 chrome moly
9 spline with one wide tooth
.650″ OD tube end
.312″ bore lightening hole
Black oxide finish
